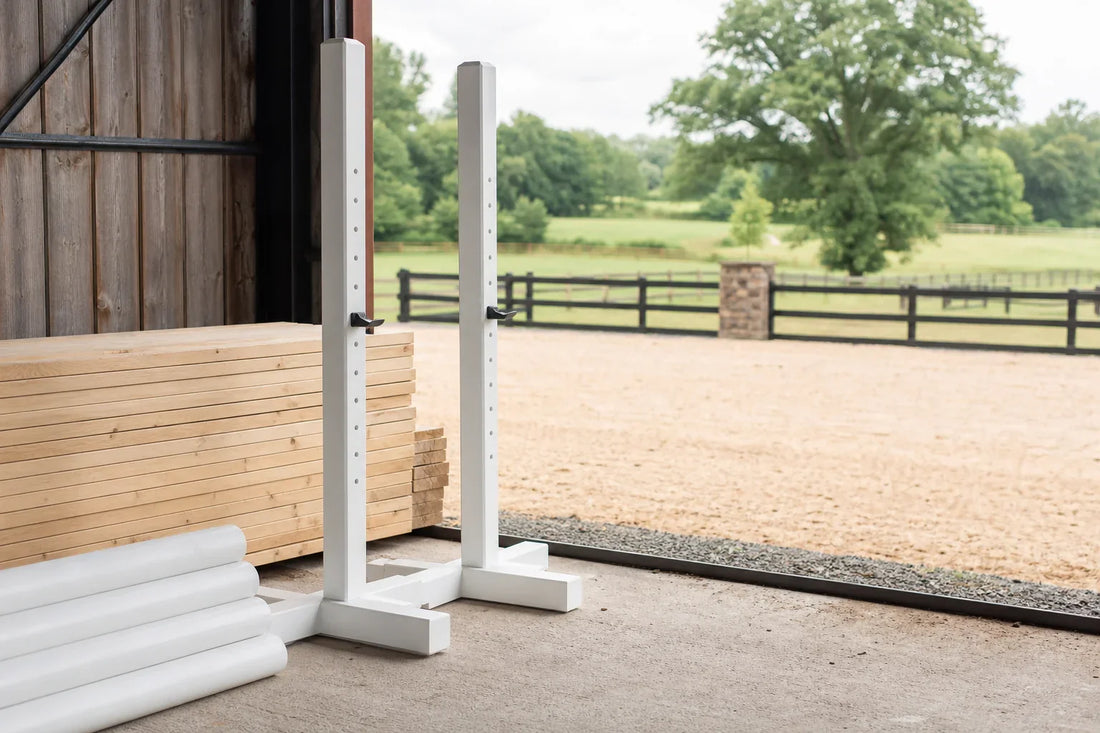

How To Build Your Own Horse Jumps
You can build your own horse jumps from basic lumber, a drill, and wood screws. A complete jump needs two standards, feet for stability, drilled jump-cup holes, and a rail or gate, and this guide covers each part step by step.
Once the structure is built, you can film schooling sessions with an auto-tracking riding camera such as Pivo Pods for equestrians to review position and progress over the same fences from a consistent angle.
At a Glance: Key Materials, Tools, and Steps
- Core parts: two 4 ft standards, four 20" feet per pair of standards, drilled jump-cup holes, and at least one rail or gate
- Lumber: 8 ft landscaping timbers for standards, 2 x 4 or 2 x 6 for feet, 2 x 4 and 1 x 3 or 1 x 4 for gates
- Tools: 18V plug-in drill, spade bit, measuring tape, saw, sander, caulk gun
- Finishes: latex painters caulk, water-based exterior primer (2 coats), spray paint for standards, oil-based enamel for rails
- Build sequence for standards: cut, mark, drill, sand, attach feet, square, add second screws, then caulk, prime, and paint
Materials and Tools for DIY Horse Jumps
DIY horse jumps use common framing lumber, basic fasteners, and a few standard power tools.
- Lumber for standards: 8 ft landscaping timbers, cut in half to make two 4 ft standards
- Lumber for feet (also called bases): 2 x 4 or 2 x 6 boards, cut into 20" feet, four feet per standard (eight feet per pair)
- Lumber for a simple gate: two pieces of 2 x 4 plus several 1 x 3 or 1 x 4 boards
- Screws: 3" decking screws for attaching feet and gate boards, 1.5" wood screws for lighter gate boards
- Drill: at least an 18 volt plug-in drill for reliable hole drilling
- Drill bit: a spade bit sized for your jump cup hardware (often in the 5/8" to 1" range), typically in the 5-15 USD range
- Measuring and cutting: measuring tape, pencil, and a hand saw or circular saw
- Surface prep: sandpaper or a power sander
- Finishing materials: latex painters caulk, water-based exterior primer, spray paint for standards, oil-based enamel for rails, planks, and gates
How to Build Jump Standards Step by Step
Building jump standards follows a repeatable sequence that cuts, drills, stabilizes, and then finishes each standard.
- Cut the standards to height. Cut 8 ft landscaping timbers in half to make two 4 ft standards, which suit most schooling jumps.
- Mark the jump-cup holes. Measure up from the bottom of each standard and make the first mark at 12 inches; then mark additional hole centers every 3, 4, or 5 inches, depending on how many height options you want.
- Drill the jump-cup holes. Use an 18 volt plug-in drill and a spade bit to drill at each mark straight through the upright portion of the standard, keeping the drill square to avoid angled holes.
- Sand the standards. Sand all surfaces of the standards, including around every drilled hole, to remove splinters and sharp edges before attaching the feet.
- Cut and shape the feet. Cut 2 x 4 or 2 x 6 boards into 20" feet and clip one top corner on each foot to remove a sharp edge and create a cleaner, show-style look.
- Attach the feet in a pinwheel. Place the bottom of the standard upright on a flat surface, confirm the drilled holes are above the work area, and attach four 20" feet around the upright in a pinwheel pattern using a single 3" decking screw in each foot.
- Square the standard. Stand the standard upright, check that each foot is square to the upright and that the upright sits at 90 degrees to the feet, and adjust foot angles while the single screws still allow movement.
- Add second screws for strength. Once your jump standards are built, follow a detailed DIY standard guide and add a second 3" decking screw to each foot to lock the feet together and make the standard stable under arena use.
- Repeat for the second standard. Build the second standard using the same measurements and steps so the pair matches.
Building the Standards for Your Horse Jumps
Landscaping timbers cut into 4 ft lengths make strong, affordable jump standards that suit most home arenas.
Many home improvement stores carry 8 ft landscaping timbers that provide one pair of 4 ft standards when cut in half, and this height works well for a wide range of schooling fences. Once the standards are cut, drilled jump-cup holes allow you to adjust rail height safely and consistently across the pair.
Start marking hole positions at 12 inches from the bottom of each standard to create a low, confidence-building height. Then choose a spacing of 3, 4, or 5 inches between marks based on how many heights you want; closer spacing adds options but increases drilling time, and a 3 inch spacing on a 48 inch standard leads to about 12 holes per standard or 24 holes per pair.
These are important elements to have in order to make the most of your jumps. Rails, planks, and gates all rely on accurate, well spaced holes so you can raise or lower fences in consistent increments during a ride; pairing them with creative jump layout ideas helps get the most schooling variety from a small number of poles.
Use a spade bit for efficiency and durability, as it drills many holes cleanly and typically costs only a few to around ten dollars. The drill should provide at least 18 volts, and a plug-in drill handles repetitive drilling more easily than many small cordless models.
How Long Should Horse Jump Standard Feet Be?
For 4 ft standards, use 20" feet to create a stable jump, and increase foot length as standard height rises.
The length of the feet directly affects how solidly the standards stand when a horse rubs or bumps a rail, so the feet are not the place to save on lumber. The bare minimum length for feet is 16 inches, but many builders prefer at least 18 inches, and 20 inch feet give 4 ft standards a wide, secure footprint that resists tipping.
Each standard uses four feet, so a pair of standards uses eight feet total cut from 2 x 4 or 2 x 6 boards. Clipping one corner on each foot removes a sharp point that could cause impact and gives a more professional look similar to what you see at a horse show.
Attach the feet only to the true bottom of each standard, checking the drilled holes to confirm orientation before driving any screws. Align the feet in a pinwheel pattern, fasten with 3" decking screws, and square everything before setting final screws so the standards stand straight in the arena.
| Standard height | Recommended foot length | Stability level |
|---|---|---|
| 4 ft schooling standard | 20" feet | Very stable for home arenas |
| 4.5-5 ft standard | 20-24" feet | Higher stability for bigger fences |
| Under 4 ft standard | 16-18" feet (minimum) | Acceptable for low, light fences only |
How to Sand and Finish Jump Standards
Sand every surface of each standard before caulking and priming to improve safety, appearance, and paint adhesion.
Use sandpaper or a power sander to smooth the upright portion, feet, drilled holes, and corners so that hands and legs do not pick up splinters when handling or brushing past the standards. Thorough sanding also helps primer and paint bond evenly and creates a cleaner, more professional finish for the final jump.
Caulking Your Standards
Apply latex painters caulk to all gaps, especially where the feet meet the upright, to seal out moisture before painting.
After sanding, run a bead of latex painters caulk along joints and cracks in the standards and smooth it with a finger or tool so the caulk fully fills each gap. Pay special attention to the feet, the junction between each foot and the upright, and the bottom of the standard, particularly when the upright uses landscaping timbers that can leave visible grooves.
Filling these gaps keeps water, dirt, and insects from settling into the wood, which extends the life of the standards outdoors and gives a smoother base for primer and paint.
How to Prime Horse Jump Standards
Use a water-based exterior primer and apply two full coats to every standard before adding color paint.
Once the caulk dries, cover each standard with a first coat of water-based exterior primer, making sure to reach around the feet, into the drilled holes, and into any remaining small grooves. Water-based exterior primer is easy to work with in a range of temperatures and creates a durable base that helps the topcoat grip the wood and wear evenly.
After the first coat dries completely, apply a second coat of primer and let it dry overnight to build a solid, even base color. When you work on multiple standards, move from one standard to the next in batches so each has time to dry between coats while you continue painting on the others.
How To Paint Horse Jump Standards
Use spray paint for jump standards and oil-based enamel for rails, planks, and gates to get the best balance of speed and durability.
After the primer dries, spray paint gives standards a smooth, seamless finish with minimal runs and no brush marks, and you can coat a standard in about 5 minutes. Spray paint also dries quickly, so you can apply several thin coats in the time that latex brush-on paint would take for fewer coats, which speeds up production when you paint multiple standards and jump cups to match.
For rails, planks, and gates, roll or brush on oil-based enamel instead of latex paint, because enamel resists arena rubs, scrapes, and repeated handling far better. Latex paint costs less and cleans up more easily, but on rails it often shows visible rubs soon after going into the arena, which leads to more frequent repainting and higher long-term time and material costs.
Always choose paints rated for exterior use so the finish can withstand sun, temperature swings, and moisture where the jumps live outside.
Next Steps: Jump Rails, Planks, and Gates
After building the standards, add rails, planks, and a simple gate to turn the pair of standards into complete horse jumps.
A basic gate uses two 2 x 4 rails with a few 1 x 3 or 1 x 4 boards screwed across them to form a solid visual barrier, and landscaping timbers can work as economical rails for schooling. With these components you can vary the height, width, and appearance of the fences without rebuilding the standards, and you can create a variety of questions for training sessions.
Using budget-friendly lumber and hardware, a pair of standards often costs roughly 40-60 USD in materials, a simple gate adds about 20-30 USD, and a full single jump with standards, rail or gate, screws, caulk, primer, and paint typically totals in the 70-100 USD range depending on local prices. With that many jumps under your belt, you can see the good, the bad, and the indifferent, and guides like building a complete jump set can help prioritize which elements to build first.
Frequently Asked Questions
How much does it cost to build a horse jump?
Most DIY horse jumps cost about 70-100 USD in materials for one complete jump with a pair of standards and a rail or gate. Expect roughly 40-60 USD for the standards, plus 20-30 USD for lumber, screws, primer, and paint for a basic gate or rail.
What lumber do you use for horse jump standards?
Landscaping timbers cut to 4 ft lengths work very well for horse jump standards. These timbers are strong, readily available, and affordable for home-built schooling fences.
How tall should horse jump standards be?
For most home arenas, 4 ft tall standards provide enough height for schooling a wide range of fences. Taller standards in the 4.5-5 ft range suit higher fences but need longer feet for extra stability.
What paint lasts longest on horse jumps?
Oil-based enamel lasts longest on horse jump rails, planks, and gates, while spray paint over primer works well on standards.
Use water-based exterior primer under both types of paint to improve adhesion and weather resistance.
How far apart should jump cup holes be?
Space jump-cup holes every 3-5 inches, starting around 12 inches from the bottom of the standard.
Closer 3 inch spacing gives more height options but requires drilling more holes, while 4 or 5 inch spacing reduces drilling time and still offers practical adjustment steps.
