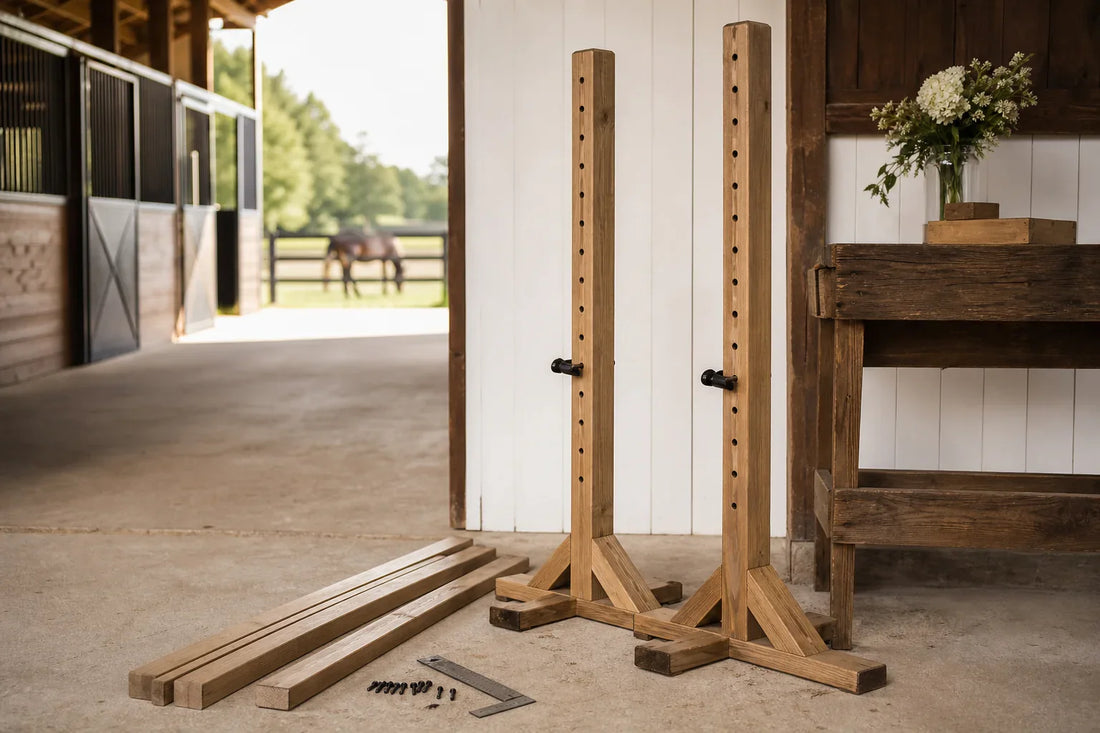

How to Build DIY Jump Standards (Materials, Cost & Steps)
Jump standards are the vertical uprights that hold the rails (poles) of a horse jump. You can build a pair of 4 ft DIY jump standards for about $15, compared with $100 or more for a store-bought pair.
Simple schooling jump standards offer the easiest design to build and move. These standards work well for new jumpers, frequent course changes, and riders who want affordable practice equipment.
- Build one pair of 4 ft schooling jump standards for about $15 in materials.
- Use one 8 ft landscaping timber for the uprights and standard 2 x 4 lumber for the feet.
- Drill jump cup holes every 3 in starting at 12 in from the bottom of each upright.
- Assemble four feet in a pinwheel pattern around each upright for stability.
- Caulk, prime, and finish with oil-based exterior paint for durability.
| Option | Approximate cost per pair |
|---|---|
| DIY 4 ft schooling jump standards | ~$15 (lumber, screws, caulk, primer, paint) |
| Store-bought jump standards | $100+ per pair (often plus shipping) |
Materials to make 1 pair of 4 ft schooling jump standards
- 1 landscaping timber (8 ft long) for the 2 uprights
- 2 boards of 2 x 4 x 8 (or 2 x 6 x 8 for wider, heavier feet)
- Sandpaper
- 3 in exterior decking screws
- 1 tube of caulk
- Kilz primer
- Rustoleum white paint, oil based
- Wood glue
Tools and accessories to build your jump standards
- 18-volt drill
- Circular saw or table saw
- Sander
- Caulking gun and putty knife
- 1/4 in auger (spade) bit
- Tape measure
- Sharpie or construction pencil
- Wood clamp
Step-by-step: How to build 4 ft DIY jump standards
The build process follows a clear sequence: cut, drill, assemble, caulk, prime, then finish.
-
Cut the landscaping timber into two 48 in uprights.
Cut the 8 ft landscaping timber in half so each upright measures 48 in. Use these two uprights for one pair of 4 ft jump standards. To build 5 ft tall jump standards, use two landscaping timbers instead and cut them to the desired height.
-
Cut the 2 x 4 boards into twelve 16 in feet.
Mark off every 16 in on each 2 x 4. Cut along the marks to create 12 pieces that are 16 in long. Use these pieces as the feet for your jump standards and save any extra 16 in feet for additional pairs.
-
Trim a safety corner off one end of each foot.
Each 16 in foot starts as a long rectangle. Use a carpenter’s square to draw a diagonal cut line and remove a triangle from one end of the board. Cutting this corner off creates a safer profile with no sharp outer corner. Secure each foot with a wood clamp while cutting and cut away from your body. Repeat this trimming step for all 16 in feet.
-
Sand the uprights and all feet.
Sand every cut surface and rough edge on the uprights and feet. Sanding all pieces at once is efficient and prepares the wood for drilling, assembly, caulk, and paint.
-
Mark jump cup hole positions on each upright.
Set both uprights on a stable surface. Place the tape measure at the very bottom of the upright and run it to the top. Find and mark the center of the face of the landscaping timber. Starting from the bottom, mark every 3 in (or 4 in if you prefer wider spacing) beginning at 12 in. For example, mark at 12, 15, 18, 21, 24, 27, 30, 33, and 36 in, and continue this pattern until you reach near the top of the upright. Repeat the same layout on the second upright so the jump cup holes match.
-
Drill the jump cup holes through the uprights.
Secure a 1/4 in auger bit in the drill. Stand each upright in a vertical position and drill straight through each marked center point. Standing the upright upright helps keep the bit straight; if you lay the upright flat, the bit tends to wander toward the back of the timber. Apply steady, even pressure to avoid blowing out and splintering the back side of the hole.
-
Re-sand the uprights around the drilled holes.
Lightly sand both uprights again, focusing on the drilled areas to remove splinters and rough edges. Use a Dremel or similar tool to sand inside each hole if you want a more finished, tidy look for the jump standards.
-
Arrange and attach four feet to each upright in a pinwheel base.
Place one upright on a table or the floor and confirm that the bottom aligns with the first drilled hole at 12 in. Position four 16 in feet around the base in a pinwheel pattern. Make sure all trimmed corners of the feet face in the same direction. Apply a small amount of wood glue where each foot will contact the upright, then align the foot flush with the bottom of the upright and drive one 3 in screw through the foot into the upright. Attach the first three feet this way while the upright lies flat. For the fourth foot, stand the upright vertically, confirm orientation, and then attach the final foot.
-
Square, stabilize, and lock the base with additional screws.
With the jump standard standing upright, use a carpenter’s square to confirm all feet form square corners and that the base stands stable, not wobbly. When you are satisfied with the stance, add a second screw through each foot into the upright. These additional screws lock the base in place so the feet do not twist. Then drive one more screw through the end of each foot into the neighboring foot. These end screws tie the feet together and add more stability and support to the jump standard base.
-
Caulk the gaps around the base and smooth the joints.
Tip the jump standard onto its side on a work table so you can clearly see underneath the base. Fill every visible gap between the upright and the feet with caulk. Use a putty knife to flatten and smooth the caulk. Flip the jump standard and fill the open spaces on the top of the base, then smooth those joints with the putty knife as well. Smoothing the caulk creates a more seamless, professional-looking base.
-
Prime the base and uprights with two coats.
Do not wait for the caulk to cure before priming. Paint primer directly over the freshly caulked base so the primer and caulk level together and create a seamless surface. Pinwheel the standard on its side to paint all upper edges of the feet, but leave the bottom unpainted until later so the standard can stand upright to dry. After priming the base, move on to the uprights and coat all surfaces. Wipe up any paint runs around the drilled holes before they dry to keep a uniform appearance. Apply two full coats of primer, allowing adequate dry time between coats, then tip the jump standard over and paint the bottom of the base and let it dry.
-
Apply two finish coats of oil-based paint and allow full dry time.
Once the primer has fully dried, apply two coats of oil-based Rustoleum as the finish coat, using the same painting pattern as the primer. Oil-based paint dries slowly, so allow at least 12 hours of dry time between finish coats and before moving the jump standards. Adequate dry time helps the finish resist chips and weathering in regular use.
Smoothing and sealing the bases of your jump standards
Caulking and sealing the base create a smooth, durable surface that looks finished and sheds water. Tipping the jump standard on its side on a work table makes it easier to see and reach all gaps between the upright and the feet.
Fill all visible gaps around the bottom of the upright with caulk and flatten the bead with a putty knife. Flip the standard and caulk the gaps on the top of the base, then smooth those joints too. Painting primer directly over the wet caulk levels the surface and gives the base a seamless, professional appearance. This method does not crack the caulk or paint once everything dries.
Priming the bases and uprights for durability
Primer seals the wood and prepares the surface for the finish coat so the jump standards last longer outdoors. Priming also helps paint adhere around drilled holes and cut edges.
After caulking the base, rotate the jump standard so you can paint all upper edges of the feet but keep the bottoms unpainted until the end. Then move on to the upright and cover all surfaces evenly, checking around each drilled hole for runs and wiping them before they dry. Painting several pairs of jump standards in sequence makes it easier to catch drips as the primer sets. Apply two coats of primer, allow them to dry completely, tip each jump standard over, and then prime the bottom of each foot.
Finishing coats and paint dry time for jump standards
The finish coats protect the wood from moisture, sun, and regular arena use, and a slow-drying oil-based paint provides a tougher shell than many latex options.
Once the primer coats are dry, apply two coats of oil-based Rustoleum following the same pattern you used for the primer. Oil-based paint dries slowly, so plan for at least 12 hours of dry time between coats and before moving or stacking the jump standards. Allowing full cure time helps the finish stay bright and chip-resistant even with frequent pole changes and arena moves.
How much do DIY jump standards cost?
Most riders can build one pair of 4 ft schooling jump standards for about $15 in materials, which saves $80 or more compared with many store-bought pairs. Once the first pair is complete, using leftover feet and buying additional landscaping timbers makes building multiple matching pairs even more economical. DIY horse jumps for under $300 can further expand a schooling course without a large budget.
Frequently Asked Questions
How tall should jump standards be?
Most schooling jump standards work well at 4 ft tall, while riders who jump higher often prefer 5 ft jump standards. A single 8 ft landscaping timber cut in half makes one pair of 4 ft uprights; taller standards require more lumber and longer cuts.
How much does it cost to build DIY jump standards?
Building one pair of 4 ft DIY jump standards typically costs about $15 in lumber, screws, caulk, primer, and paint. Store-bought jump standards often cost $100 or more per pair, not including shipping.
What wood is best for DIY jump standards?
Landscaping timbers make strong, affordable uprights, and standard 2 x 4 or 2 x 6 boards work well for the feet. Wider 2 x 6 feet add weight and stability if you expect wind, heavy use, or larger jumps. For more complex uprights such as wings, follow a dedicated guide on building DIY wing standards and adapt the sizing to your arena.
How far apart should jump cup holes be on the uprights?
Most DIY builders space jump cup holes every 3 in starting at 12 in from the bottom of the upright. Some riders choose 4 in spacing for fewer holes, but consistent spacing on both uprights keeps the rails level.
How long does jump standard paint take to dry?
Oil-based Rustoleum needs at least 12 hours of dry time between coats and before you move the jump standards. Cooler temperatures or high humidity can lengthen the dry time, so allow extra time before heavy use. Guidance on choosing paint for horse jumps can help match products to local weather and wear.
