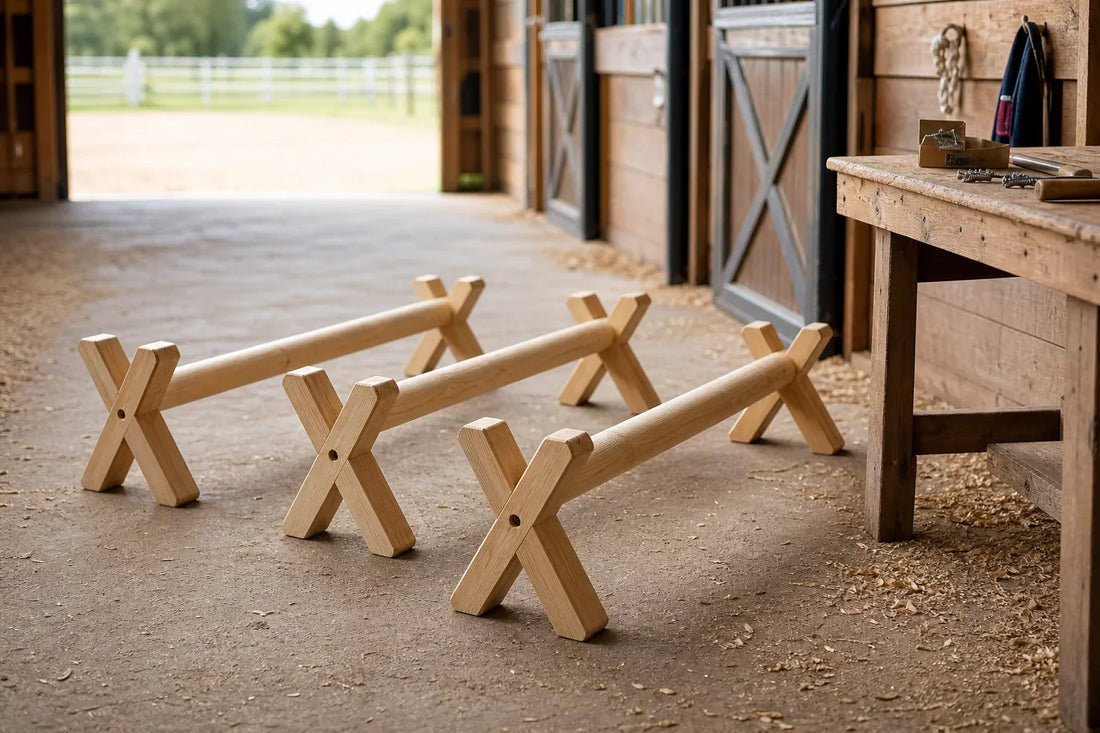

How to Build a DIY Cavaletti
A cavaletti is a low, adjustable ground rail for horse schooling. You can build one from four 2x4s as two X-ends joined by a doubled rail, for about $20 in roughly one day.
Each DIY cavaletti costs about $20.00 to build with paint and caulk, around $17.00 without paint and caulk, or about $50.00 for a set of three if primer and caulk are already on hand.
| Configuration | Approximate cost (USD) |
|---|---|
| One cavaletti with paint and caulk | ~$20 |
| One cavaletti without paint and caulk | ~$17 |
| Set of three cavaletti with paint and caulk on hand | ~$50 |
The finished cavaletti uses a doubled 2x4 rail that is 8 ft long, with about 7.5 ft of usable rail between the X-ends, and the rail height sits roughly 10 to 12 inches off the ground depending on how you rotate the X-ends.
For easy measuring and assembly, cut the 2x4 X-ends to 24 inches long and the stabilizing feet to 10 inches long. This cut method creates a small amount of waste from the 2x4s but keeps the layout simple and the construction repeatable.
At a glance: DIY cavaletti basics
- Design: Two wooden X-ends with a doubled 2x4 rail
- Lumber: Four 2x4 x 8 ft boards per cavaletti
- Finished rail length: 8 ft, about 7.5 ft usable between X-ends
- Approximate height: 10 to 12 inches off the ground at the rail
- Build time: About one day including cutting, assembly, and painting
- Typical trot spacing: About 3.5 to 4.5 ft between cavaletti for most horses
- Approximate cost: $17 to $20 per cavaletti depending on finish
What You Need To Build One DIY Cavaletti
To build one cavaletti you need four 2x4 x 8 ft boards plus these tools and supplies:
- Four 2x4 x 8 ft boards
- 2.5 inch wood screws
- Painter's caulk
- Kilz 2 primer
- Sandpaper
- Drill
- Saw
- Orbital sander
- Measuring tape
- Pencil or marker
How To Build Cavaletti Step-by-Step
Building one cavaletti takes three steps: cut the boards, build two X-ends, and attach the doubled rail.
1. Cut Your Boards
Cut the 2x4s into the following pieces for one cavaletti:
- Cut four 24 inch pieces for the two X-ends.
- Cut four 10 inch pieces for the stabilizing feet.
- Leave two full 2x4 x 8 ft boards to form the doubled rail.
To create the 24 inch pieces, take one 2x4, use a measuring tape to mark off 24 inch increments, and cut along the marks with a saw until you have four 24 inch pieces. To create the 10 inch feet, take another 2x4, mark off 10 inch increments, and cut along those marks to produce four 10 inch pieces for the stabilizing feet.
2. Build the X-Ends
Build each X-end by crossing two 24 inch pieces and adding stabilizing feet.
- Take two 24 inch pieces and position them into an X shape.
- Eyeball the X shape, then use a measuring tape to check that each arm of the X is just over 10 inches long from the center to each end.
- When the measurements look correct, secure the center of the two 24 inch pieces together with screws to form one X-end.
- Attach one 10 inch piece of wood horizontally at the bottom of each side of the X-end as a stabilizing foot.
When assembled correctly, the X-end stands without additional support, and the 10 inch feet make the X-end sturdy and give it the appearance of a traditional cavaletti end.
Repeat this process with another two 24 inch pieces and two 10 inch feet to make the second X-end.
3. Attach the Rail
Attach the doubled rail by fastening two full-length 2x4s between the X-ends.
- Set up the two X-ends facing each other at the desired distance apart.
- Place one full 2x4 x 8 ft board horizontally between the X-ends at the desired height.
- Secure the first rail to each X-end with 2.5 inch screws driven through the X-ends into the rail.
- Place the second full 2x4 directly on top of the first rail so the edges line up.
- Secure the second rail to the first rail with screws along the length of the boards.
Add several screws along both sides of the top rail so the doubled rail and the X-ends feel solid and secure when you move the cavaletti.
At this point, the cavaletti is fully functional and ready to use on flat ground for walk and trot work.
Finishing Your Cavaletti For Outdoor Use
Finishing the wood with caulk and primer protects the cavaletti from weather and extends its life outdoors.
To prepare each cavaletti for outdoor use:
- Fill all gaps, cracks, and screw holes with painter's caulk.
- Sand any rough edges with sandpaper or an orbital sander after the caulk dries.
- Paint each cavaletti with three coats of Kilz 2 primer.
The Kilz 2 primer dries quickly and helps protect the wood from moisture, sun, and everyday schooling wear.
How Long Does It Take to Build Cavaletti?
Most riders can build, finish, and paint one cavaletti in about one day of basic DIY work.
The cutting and assembly portion typically takes a few hours, and the remaining time covers caulking, sanding, and applying three coats of primer with drying time in between.
Cavaletti provide a versatile schooling tool, and you can use a line of three to four cavaletti for rhythm work, trot poles set about 3.5 to 4.5 ft apart for most horses, or simple grids to improve balance and coordination. Projects like this pair well with filming rides using an auto-tracking horse riding camera so you can review cavaletti work later, evaluate position, and track progress over time.
The results? These DIY cavaletti were incredibly easy to make and very affordable, especially if you are also interested in building a larger course using DIY horse jumps for under $300.
Then a pin on Pinterest led to The Other Horse. The instructions there were clear and complemented other barn projects like building a budget hitching rail for horses that match these cavaletti.
Here’s what you’ll need to make one cavaletti: detailed planning, basic tools, and a clear idea of how it fits into an overall schooling and show setup, which you can map out with guides like everything you need to prep for your horse show.
Frequently Asked Questions
What is a cavaletti used for?
Riders use cavaletti to improve a horse's rhythm, balance, strength, and coordination at the walk, trot, and canter. Trainers also use cavaletti to develop rider position, adjustability of stride, and gymnastic jumping skills without full-sized jumps.
How tall should a cavaletti be?
A typical wooden cavaletti used for flatwork and basic jumping sits about 10 to 12 inches off the ground at the rail. The X-ends in this design produce a low rail height in that range, which is ideal for most schooling exercises.
How much does it cost to build a cavaletti?
Building one DIY cavaletti from four 2x4s costs about $20 with paint and caulk or about $17 without paint and caulk. If you already have primer and caulk, you can often build a set of three cavaletti for roughly $50 in lumber and screws.
What size lumber is used for cavaletti?
This DIY cavaletti uses standard construction lumber in the form of four 2x4 x 8 ft boards for each cavaletti. The cut list turns two boards into four 24 inch X-end pieces and four 10 inch feet, and leaves two full 8 ft boards to form the doubled rail.
How many cavaletti do you need?
Most riders use three to four cavaletti in a line for trot or canter work, with about 3.5 to 4.5 ft spacing between rails for trot poles. A single cavaletti still provides value for basic ground work, raised poles, and simple gymnastic exercises.
